Varme Electric Underfloor Heating Cable Mat Kit 200w

Varme Electric Underfloor Heating Cable Mat Kit 200w

Thermostat *

Our Price
£91.00

(inc VAT)
In Stock
SKU: TPSM200W

Cable mats allow underfloor heating to be laid over large areas in a short amount of time. They are externally versatile, offering the flexibility to heat any shape of room.

The Varme cable mat system is similar to the Varme loose cable system except the with the mat, the cable comes ready taped to a 50cm wide fibreglass mesh. The advantage over the loose cable system is that it is much faster to lay which is ideal in larger open plan areas.

Varme Mat 200w is based on the same design as Varme Mat 150w. But the output has been increased to 200w/sqm making them ideal for use in conservatories and other areas of high heat loss.

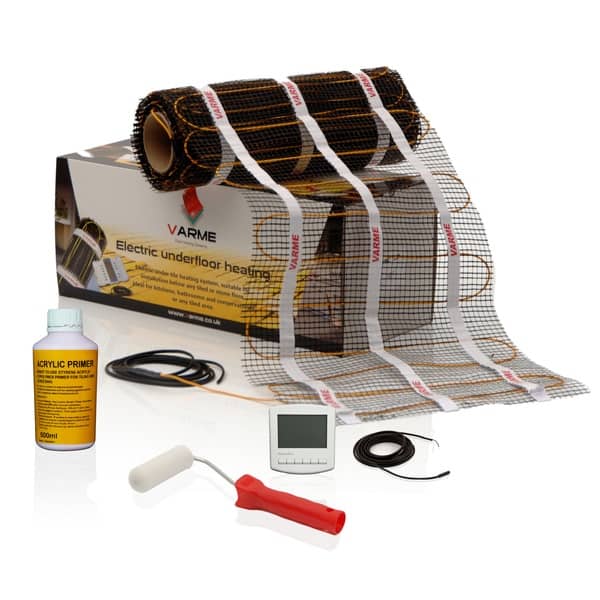

Varme Mat System come complete with:

  1. Heating cable supplied woven to a self adhesive mesh
  2. Fully programmable thermostat controller with floor probe
  3. Floor primer
  4. Roller for primer
  5. Simple installation instructions
  6. Manufacturers Lifetime Warranty

Read our FAQ section to learn more

Installation Manual

Handy PDF guide for help with your installation

Download Manual

Installation is easy:

  1. Roll our the mat onto the existing sub-floor or insulation boards
  2. When the opposite wall is reached the mesh is cut (do not cut the wire)
  3. The mat is then rolled back in the opposite direction
  4. When the mat is in place, the release paper on the double sided tape is peeled back
  5. The mat is then pressed to the primed floor to hold it in place for tiling

We only supply ‘twin core’ heating cables. Twin core cables have two heating elements inside which gives two important advantages over ‘single core’ cables.

Firstly you only have one end to connect to the power supply, which is a big advantage during the installation process.

Secondly the EMF (electromagnetic field) which is created in all electrical appliances and wiring is dramatically reduced, to a level where it is almost immeasurable. Whilst this may not be a major concern for you today, there is a lot of research currently being undertaken around the globe into the effects of EMF and it is impossible to predict what findings may occur in the years ahead.

Comparison Chart for 200w Mat Kits

.tg {border-collapse:collapse;border-spacing:0;border-color:#aaa;}
.tg td{font-family:Arial, sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#aaa;color:#333;background-color:#fff;}
.tg th{font-family:Arial, sans-serif;font-size:14px;font-weight:normal;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#aaa;color:#fff;background-color:#f38630;}
.tg .tg-0r18{font-size:14px;border-color:inherit;text-align:center;vertical-align:top}
.tg .tg-kjjl{font-weight:bold;font-size:14px;color:#ffffff;border-color:inherit;text-align:center;vertical-align:top}
.tg .tg-2xpi{font-size:14px;background-color:#efefef;border-color:inherit;text-align:center;vertical-align:top}

Product Code Outputs (Watts) Mat Length (Meters) Mat Width(cm) Mat Coverage(sqm)
TPSM150 150w 2m 50cm 1.0sqm
TPSM225 225w 3m 50cm 1.5sqm
TPSM300 200w 4m 50cm 2.0sqm
TPSM375 375w 5m 50cm 2.5sqm
TPSM450 450w 6m 50cm 3.0sqm
TPSM600 600w 8m 50cm 4.0sqm
TPSM750 750w 10m 50cm 5.0sqm
TPSM900 900w 12m 50cm 6.0sqm
TPSM1050 1050w 14m 50cm 7.0sqm
TPSM1200 1200w 16m 50cm 8.0sqm
TPSM1350 1350w 18m 50cm 9.0sqm
TPSM1500 1500w 20m 50cm 10.0sqm
TPSM1650 1650w 22m 50cm 11.0sqm
TPSM1800 1800w 24m 50cm 12.0sqm
TPSM1950 1950w 14m + 12m 50cm 13.0sqm
TPSM2100 2100w 14m + 14m 50cm 14.0sqm
TPSM2250 2250w 14m + 16m 50cm 15.0sqm
TPSM2400 2400w 16m + 16m 50cm 16.0sqm
TPSM2550 2550w 16m + 18m 50cm 17.0sqm
TPSM2700 2700w 18m + 18m 50cm 18.0sqm
TPSM2850 2850w 22m + 16m 50cm 19.0sqm
TPSM3000 3000w 24m + 16m 50cm 20.0sqm
TPSM3150 3150w 24m + 18m 50cm 21.0sqm
TPSM3300 3300w 22m + 22m 50cm 22.0sqm
TPSM3450 3450w 22m + 24m 50cm 23.0sqm
FH-01 Digital Thermostat The Underfloor Heating Company Standard FH-01 Digital Thermostat

  • Hard wired 230v thermostat
  • Fully programmable
  • White backlit digital display
  • Button operated
  • Built in floor sensing
  • Includes 3 metre floor probe
  • 16A capacity
 Heatmiser NeoStat-E V2 White the underfloor heating company Heatmiser neoStat-E

  • Hard wired 230v thermostat
  • Control from your smart phone (requires Neo Hub)
  • Fully programmable
  • White backlit digital display
  • Soft touch buttons
  • Built in floor sensing
  • Includes 3 metre floor probe
  • 16A capacity
 Heatmiser neo kit 1 The Underfloor Heating Company Heatmiser neoStat-E Kit

  • Hard wired 230v thermostat
  • Includes neoStat-E & neoHub system gateway
  • Control your heating from your smart phone
  • Fully programmable
  • White backlit digital display
  • Soft touch buttons
  • Built in floor sensing
  • Includes 3 meter floor probe
  • 16A capacity thermostat
