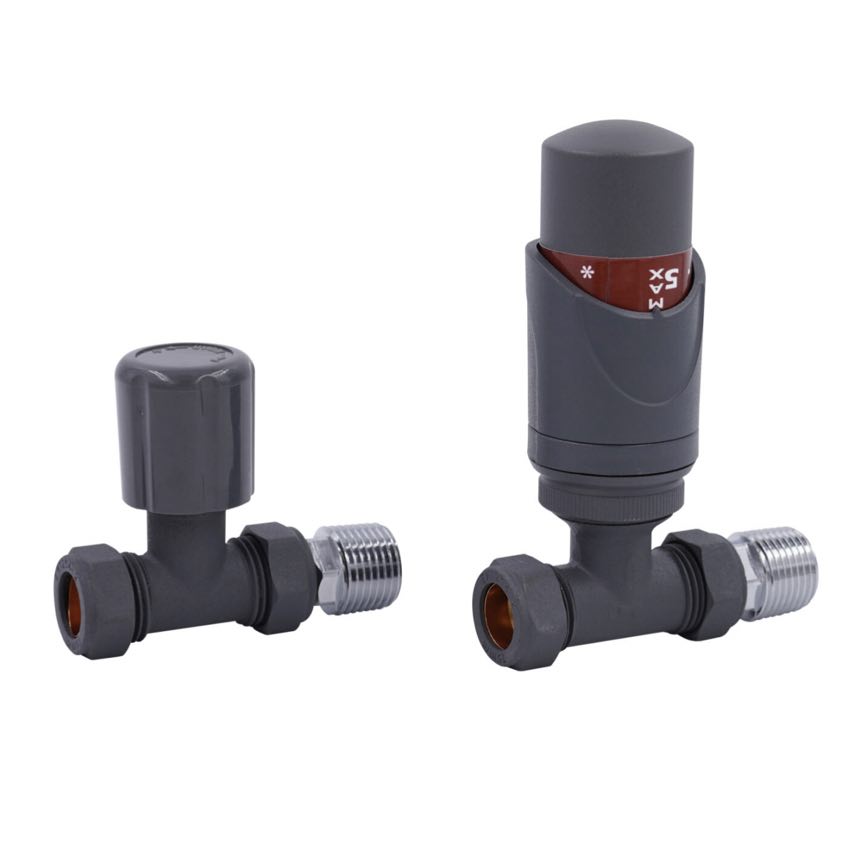

Grey Straight Radiator TRV & Lockshield Set – 15mm

A straight pattern thermostatic radiator valve TRV with grey knob sensor, wheelhead and matching lockshield.  The valve body can be mounted either vertical or horizontal.

15mm compression inlet and 1/2″ BSP TM radiator tailpiece. PTFE tape included.

The thermostatic radiator valves are approved to EN 215. For valves with compression connections, the connections are approved to BS EN1254-2; threaded connections comply with ISO228. They are designed for use only in an indirect open-vented or sealed water-filled central heating and/or indirect hot water system and for no other purpose.

Under no circumstances must they be used in systems containing liquids or solutions other than water. The only exception is the addition of a proprietary central heating corrosion inhibitor, cleaner or anti-freeze to the system water in accordance with the manufacturer’s instructions.
The heating controls are manufactured to a strict quality assurance system in accordance with ISO 9001: 2015.

Operating Conditions

Max system water temperature at 5bar: 120C
Max operating pressure at 65°C: 10 bar
